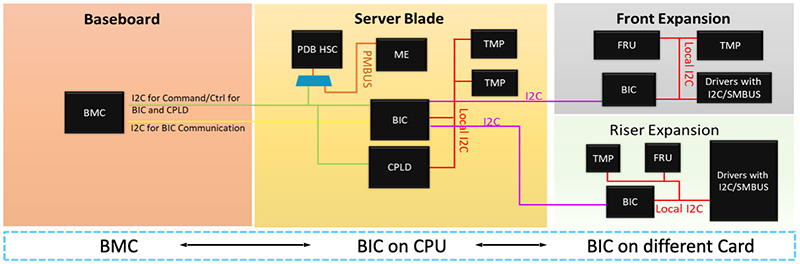

A Satellite Management Controller (SMC) is a highly specialized, compact management processor equipped with integrated memory, storage, and independent control logic. Deployed within modular and high-density computing environments, particularly under the Open Compute Project (OCP) framework, the SMC serves as a decentralized, local management agent that works in tandem with the primary Baseboard Management Controller (BMC).
產品總覽
欲了解更多產品資訊，請點選“產品型號”。
| 產品型號 | 產品規格 | 封裝規格 | RoHS 10 及無鹵素 | 生產時程 |
|---|---|---|---|---|
| AST1030 | eSPI, I2C/I3C, USB interface, internal flash/SRAM, BMC | 256-pin 13mmx13 mm TFBGA package | 是 | 2021 年 10 月 |
| AST1035 | eSPI, I2C/I3C, USB interface, external flash/SRAM, BMC | 256-pin 13mmx13 mm TFBGA package | 是 | 2022 年 10 月 |
| AST1840 | eFPGA-Dedicated 200 I/Opins + 25K LUTs; eSPI, I2C/I3C, USB (Host/Device), internal flash/SRAM, Caliptra, physical anti-tamper | 441pin, 17mmx17mm TFBGA package | 是 | Sample 2026/Q3 |
| AST1040 | eSPI, I2C/I3C, USB (Host/Device), internal flash/SRAM, Caliptra, physical anti-tamper | 289 pin 14 mm x 14 mm TFBGA package | 是 | Sample 2026/Q3 |
